Rope taping cutting winding machine ES-106 design map

The rope taping cutting winding machine ES-106 design map

Machine design drawing

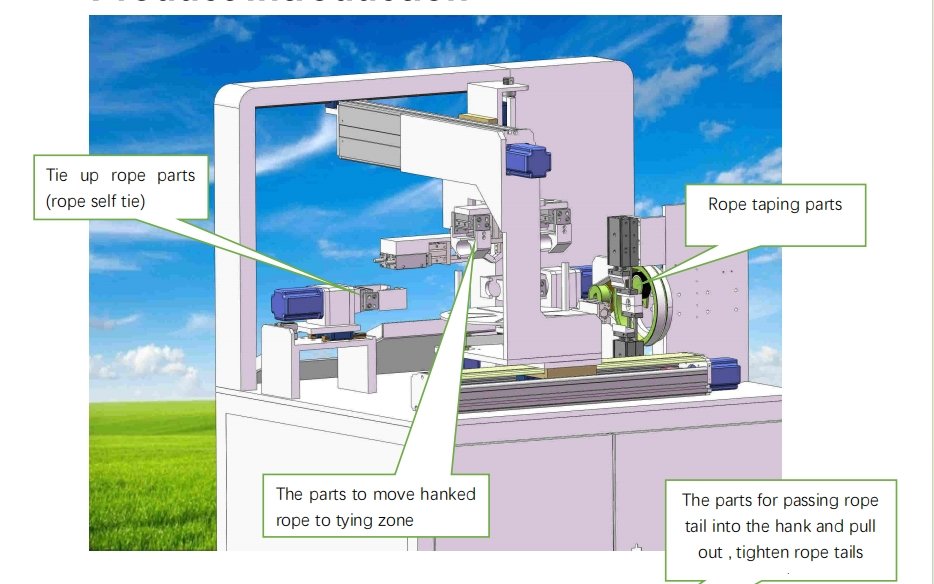

Rope taping cutting clipping machine design map 1

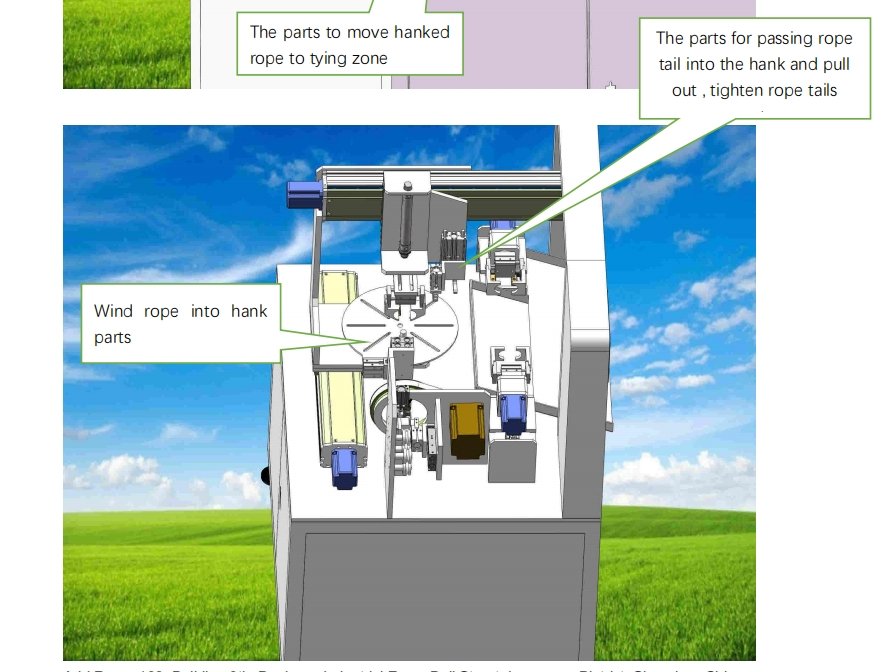

Rope taping hot&cold cut automatic cutting winding machine design map2

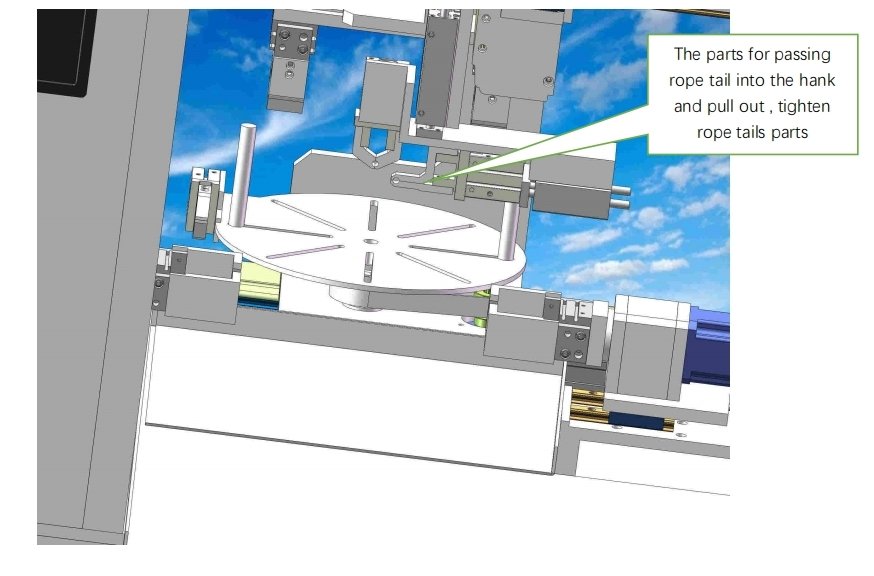

Hanking device

Final machine design map

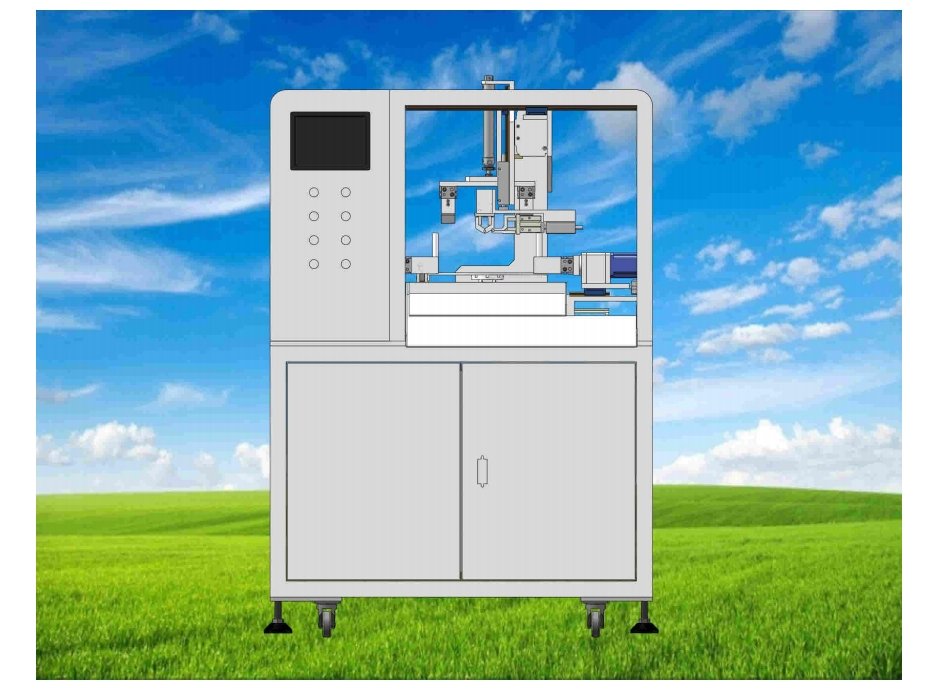

rope taping cutting winding machine design map 1

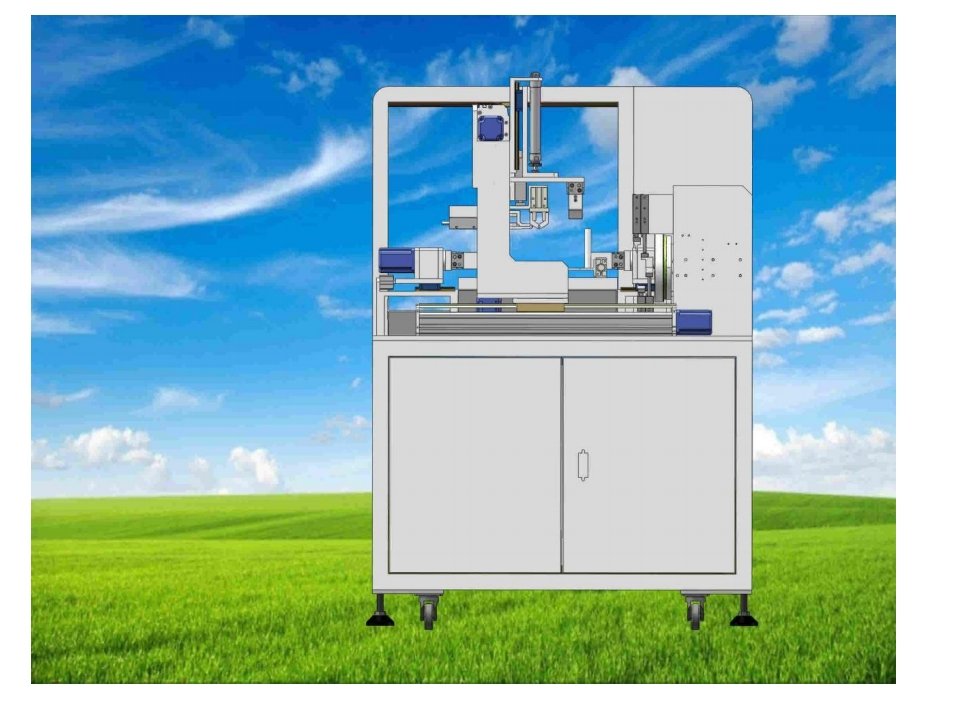

rope taping cutting winding machine design map 2

Technical data

Product name: The rope taping hot&cold cut automatic cutting machine

Model No.: ES-106

Control system：PLC and touch screen

Automation spare parts support：Stepping motor,servo motor，

precision lining lead rail and silk bar。

Power： 3KW(Single phase）

Air force：0.7MP

Machine dimension ：1200*950*1400mm

ESMAI focuses on design and manufacture of customised cutting machines with additional automation based cutting
